Saturday, October 22, 2011

10g Data pump

Basic Data Pump Concept (1)

Tuesday, October 18, 2011

11g Forms and Reports Installation with weblogic server

11g Forms and Reports Installation with Weblogic Server

Thursday, March 17, 2011

Removing the concurrent request and other related log files

Understanding the basic search in Linux

At first we have to know few basic ideas how to search a file in Linux,  then only we can  get the idea how to remove concurrent request log files and other files.

$find                                      --- this is the command to search for files

$find  /etc                               ---this command searching for the mount point “/etc”, it will display all the files under /etc mount point

$ find /etc -name  host*          -- this command will search those files which start with “host” and end with any, and the search  under the /etc folder. We can call this is a search by file name.

$find /etc –iname host*          -- this command would search for the same, but with case no sensitive

Searching old files
Searching old files in linux with a keyword  “-mtime” .

$find /etc –mtime +7  –iname host*       -- now this will search for the file name starts with “host”, and with the condition of last 7 days from this day.

Here “-mtime”, is used to specify the number of days old that the file is. If you enter +5, it will find files older than 5 days, if you enter -5, it will find files which are created 5 days before to till now.

Now we are going to learn how to remove the old files in our log directory of E-Business suite file structure, which always makes trouble for us.

Here we are going to delete those files which are older than 7 days.(Concurrent request files )

 $find $APPLCSF/$APPLLOG -mtime +7 -name “*.req” -exec rm “{}” “;”

Note that $APPLCSF/$APPLLOG is the shortcut for the concurrent log folder, if you are in the same directory then no need of giving the shortcut or the full directory path. And I have deleted “.req” with the file extension, if you want to delete the log files then you have to mention “.log” file. Likewise “.rti”, ”.mgr” and other files we can remove from the concurrent request log folder.

Hope it is useful for ever one.


Purging concurrent request will remove the finished concurrent and its log files

Here you can see how to purge concurrent requests by running a request called "Purge Concurrent Request and/or Manager Data".

Follow the below screens to run this request:

As system administrator users login --> navigate to System administrator

Click the Concurrent-->Request
Click "Submit a New Request"

Click the "Single Request"  then click "OK"

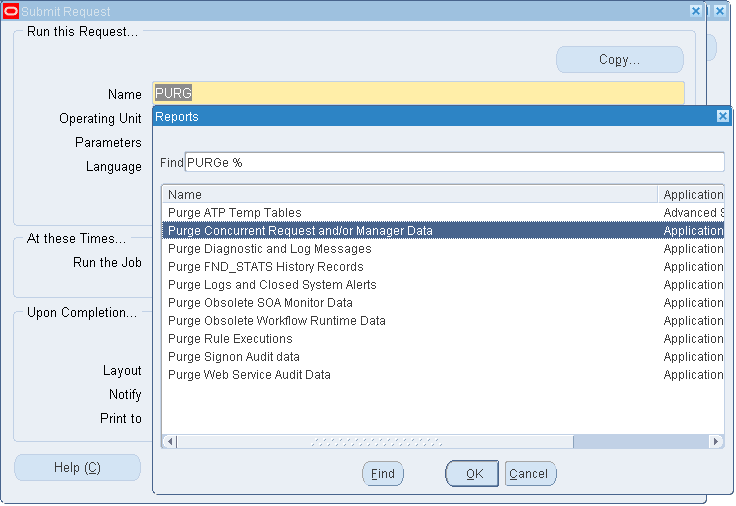

In the "Run this Request " Page search for ""Purge Concurrent Request and/or Manager Data" then click ok

Then this request will pop up a different form where we have to pass the parameters of which request we are going to purge by this request.

After giving all those required parameters you can submit the request, it will take several min to complete. if you have huge number of request to purge then it will take more than estimated time. this request will clear all the log files and out files in your file system according to your given parameter for the request.

Wednesday, March 16, 2011


As a part of understanding Oracle Apps all the beginner must understand this ".req",".log","rti" and log files.
As we know that, when ever any Concurrent Request is submitted, log and output files are stored in $APPLCSF/$APPLOG and $APPLCSF/$APPLOUT directories respectively.

Apart from concurrent request files, some other files are also getting stored in the same directory.

Those brief description  in this  blog.
1.       l<Request ID>.req                      example “l1420978.req”

This is the Concurrent Request log file. When any concurrent request is submitted, request log file is created in this directory with file name as l<Request ID>.req

Inside of this Request File
Application Object Library: Version : 12.0.0
Copyright (c) 1979, 1999, Oracle Corporation. All rights reserved.

FNDWFLSC module: Synchronize WF LOCAL tables
Current system time is 11-MAR-2011 00:31:11
**Starts**11-MAR-2011 00:31:11
**Ends**11-MAR-2011 00:31:13
Start of log messages from FND_FILE
End of log messages from FND_FILE
Executing request completion options...
+------------- 1) PRINT   -------------+
Printing output file.
               Request ID : 1418182
         Number of copies : 0
                  Printer : noprint
Finished executing request completion options.
Concurrent request completed successfully
Current system time is 11-MAR-2011 00:31:13
"l1418182.req" 43L, 1510C

2.      Events####.log                           example “Events117.log”

This Events####.log contains information of log written by when any problem with starting of middle tier applications (sh is  a shell script to start all the middle tier application , remember the script locations in R12 and 11i  )

 3.   Error####.log                             example “Errors118.log”

It contains the Java Exception Errors.

4.      #####.log                                     example “03111123.log”

This file keeps the information of starting of Apache Listener.

Inside of this Apache Listener file follows

Setting service Oracle Apache Server TEST_ibm to mode 3
Executing service control script:
/ebiz/testappl/testcomn/admin/scripts/TEST_ibm/ stop
Timeout specified in context file: 100 second(s)

script returned:
**************************************************** version 115.54

Apache Web Server Listener :httpd ( pid 27449 ) is running.
Stopping Apache Web Server Listener (dedicated HTTP) ...
Apache Web Server Listener (PLSQL) :httpd ( pid 27557 ) is running.
Stopping Apache Web Server Listener (dedicated PLSQL) ... exiting with status 0

.end std out.

.end err out.

5.      f60webmx_dump_<PID>                       example “f60webmx_dump_11299”

This file is created when ever any Client Forms Session ends Unexpectedly. When user forms session got crash or terminated abruptly that diagnostics information is written into this dump file.

Inside of this file if unexpected close of Client forms session looks like this:

[Tue Mar  8 13:24:34 2011 IST]::Client Status [ConnId=83, PID=11299]
        >> Network connection to client failed: timeout on connection
Possible causes include a network failure or client termination

6.       em_<PID>.rti                                          example “em_10984.rti”

This file contains Client run time process information. These files are used by Oracle Application Manager and Enterprise Manager for Forms Monitoring Services and are generated by Forms runtime processes. For each f60webmx session, there is one .rti file is created. These files are written to the directory set by parameter $FORMS60_RTI_DIR.

 By default these are written into $APPLCSF/$APPLLOG directory. RTI files should be automatically cleaned up when user logs out of the forms session, in case user logs out of the forms sessions abruptly. Then these files are not cleaned up properly. So then you may need to clear these files manually. We can delete the files, but we should not delete these files when users are active.

em –> enterprise manager
<PID> –> Process ID of Client
rti –< Run time information In some cases

.rti file contains:

listener = ibm_9001_TEST
pid = 10984
connect = Thu Mar 10 19:20:01 2011 IST
ip =

                  This above details are for basic understanding of log files, kindly follow search more documents in metalink, that will be more useful than any other.
